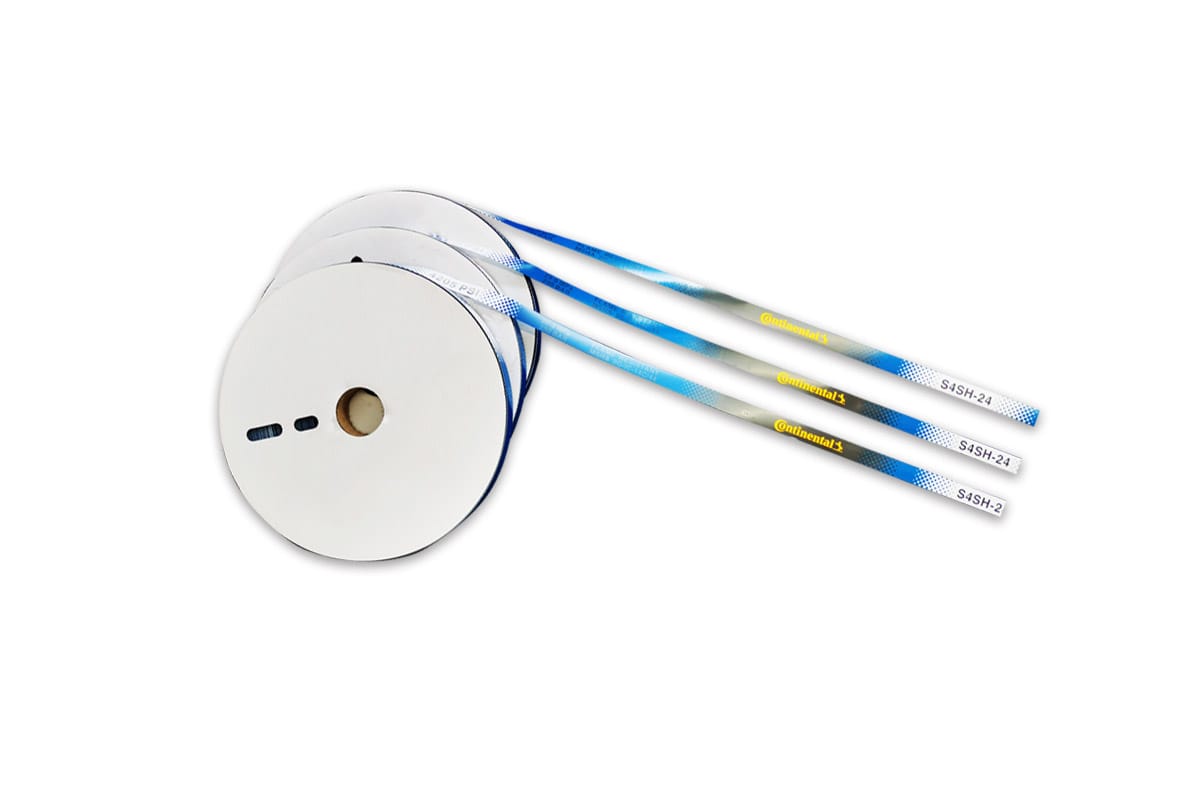

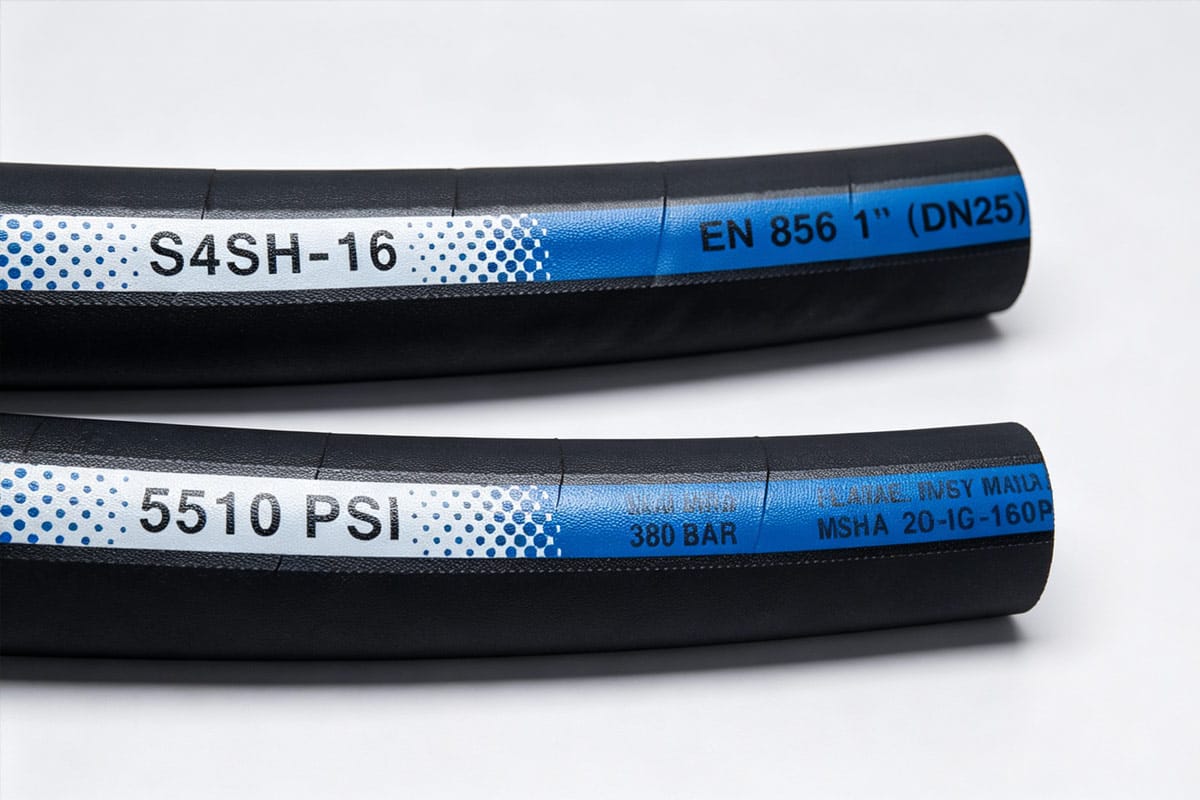

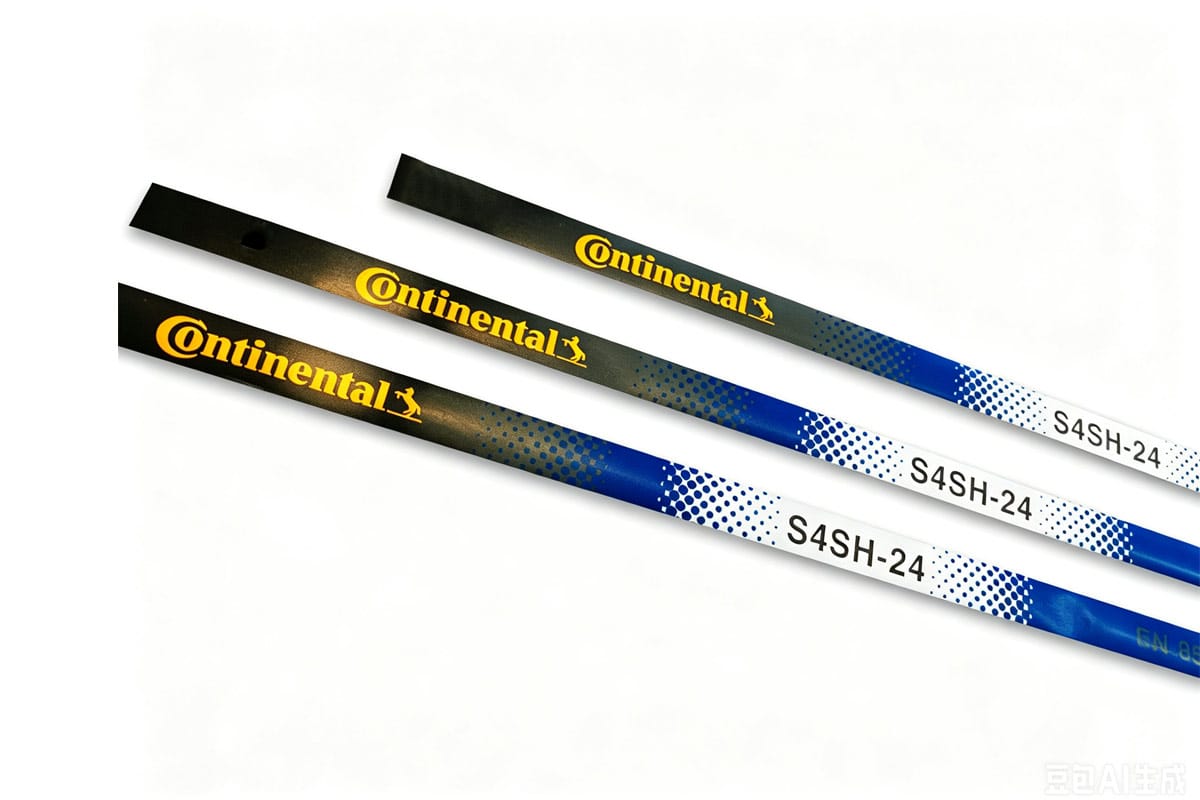

Four Color Hydraulic Hose Labels for Complex Specifications
- Width: 20 mm
- Colors: Multi color
- Thickness: 60 μm
- Temperature: 100-160 ℃
- Length: 400-500meters/roll
- Application: hydraulic systems
- Feature: Free label design & Free samples
Products Details
FLLabels manufactures premium pre-printed four color hydraulic hose labels supplied on continuous rolls. Designed for hydraulic hose manufacturers who require complex color-coded identification, our labels feature up to four precisely registered colors printed on a specialized polypropylene carrier film. During vulcanization, the ink permanently transfers to the rubber surface, delivering vibrant, color-coded specifications that remain legible throughout the hose lifecycle. After curing, the carrier film peels away cleanly, leaving a professional multi-color layline marking.
The Industry Challenge: Common Failures in Multi-Color Hose Marking
Significant Color Deviation
The color of the label after vulcanization differs drastically from the original design proof. This leads to inconsistent brand identity and failed quality inspections when color-coding pressure ratings.
Dull & Faded Appearance
The transferred ink lacks gloss and vibrancy after the curing process. Multi-color markings look washed out and unprofessional, reducing the overall aesthetic and readability of the rubber hose.
Blurred Text & Misaligned Colors
High heat and pressure cause the ink to spread or shift during multi-color transfer. Critical information like logos and specification text becomes blurry, and color layers fail to align properly.
How Our Multi-Color Transfer Labels Work
Our pre-printed roll labels are engineered for seamless integration into your existing hydraulic hose manufacturing workflow:
- Wrap: The continuous roll of pre-printed multi-color labels is spirally wrapped onto the uncured hydraulic hose.
- Cover: The hose is then wrapped with nylong water cloth or plastic sheeting as per your standard curing process.
- Vulcanize: Inside the autoclave or CV line (typically 140°C–155°C), the heat and pressure activate the multi-color inks, bonding them permanently to the rubber matrix.
- Peel: After cooling, the carrier film is smoothly peeled away, revealing vivid, saturated colors with clean transfer and zero residue.
Labels Details & Transfer Effects
Core Advantages of FLLabels Transfer Technology
- Clean Transfer & Easy Peel-Off: Our specialized carrier film ensures the film strips away effortlessly after vulcanization. No tearing, no residue, and no secondary cleaning required.
- Vivid Colors & Clear Printing: Using premium imported inks, we deliver sharp, vibrant, and highly saturated colors that remain crisp, glossy, and legible after high-temperature curing.
- Strong Ink Adhesion: The ink formulation is strictly tested to cross-link deeply with the rubber matrix, ensuring the marking will not peel off when scratched or bent.
- Full Customization: We offer custom widths from 8mm to 400mm, supporting single, dual, or multi-color printing, as well as embossed/debossed effects to meet your exact branding needs.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Pre-printed Multi-Color Vulcanization Transfer Labels |
| Carrier Material | Premium Polypropylene (PP) Release Film |
| Standard Thickness | 60um (20um-100um customizable) |
| Available Widths | 20mm (8mm up to 400mm customizable) |
| Curing Temperature Window | 140°C to 155°C (Optimized for multi-color stability) |
| Rubber Substrate Compatibility | NBR, CR (Neoprene), EPDM, SBR |
| Color Options | Up to 4 colors (Custom Pantone matching available) |
| Roll Length | 400m – 500m per roll (or as requested) |
Target Applications: Compatible Hose Types
Our multi-color transfer labels are meticulously formulated to meet strict identification requirements for various heavy-duty hydraulic applications. For single-color standard identification, explore our dedicated Hydraulic Hose Identification Labels.
- Color-Coded Hydraulic Systems: Differentiate pressure ratings, hose types, and fluid compatibility by color for quick visual identification.
- OEM Branding & Logos: Multi-color logos and complex specification layouts that require high visual impact and brand consistency.
- Heavy-Duty Construction Equipment: Hoses requiring distinct safety warnings and operational parameters in multi-color formats.
Frequently Asked Questions
Our inks are specifically formulated to maintain color stability under heat. While slight shifts can occur depending on the rubber compound and exact curing temperature, we conduct rigorous pre-production sample testing to match your approved design proof and Pantone colors as closely as possible.
Yes. We offer custom Pantone color matching for multi-color printing. This ensures your brand colors are accurately reproduced on hose markings, maintaining strict brand consistency across your entire product line.
No. The co-vulcanized ink resists hydraulic oils, petroleum derivatives, and UV exposure. Because the ink chemically bonds with the rubber matrix during curing, the vibrant colors remain stable and do not fade throughout the hose service life.
Request Free Testing Samples
Stop struggling with color deviation, dull appearance, and misaligned printing. Test our multi-color transfer labels on your actual production line.
Contact Our Engineering Team →
We will send you customized free samples tailored to your curing process.
Technical Downloads
Product Data Sheet
Download our comprehensive technical specifications and application details.
What Our Customers Say
Automotive brake hoses require precise traceability and DOT compliance. FLLabels' high-precision vulcanizable labels and manufacture dates meet Korean automotive standards. Their 10mm labels fit our small-diameter brake lines perfectly. ISO 9001 certification and batch-to-batch consistency impressed our quality team.
Chemical resistance is critical for our petrochemical hoses. FLLabels vulcanizable labels withstand acid and solvent exposure without fading. We appreciate their 200,000m monthly capacity and 15-day lead time. Highly recommended for chemical industry applications, recommend!
We run high-pressure hydraulic hose production at 155°C vulcanization temperature. FLLabels' thermal transfer labels have maintained perfect adhesion and barcode readability for over 2 years. The 30mm width fits our 3/8" to 1" hoses perfectly. Their ISO 9001 certification gave us confidence in batch consistency.
