Hydraulic Hose Layline Marking Tape for High-Pressure Systems
- Width: 10 mm
- Colors: Two color
- Thickness: 60 μm
- Temperature: 95-155 ℃
- Length: 450meters per roll
- Application: Hydraulic Hose & System
- Feature: Free label design & Free samples
Products Details

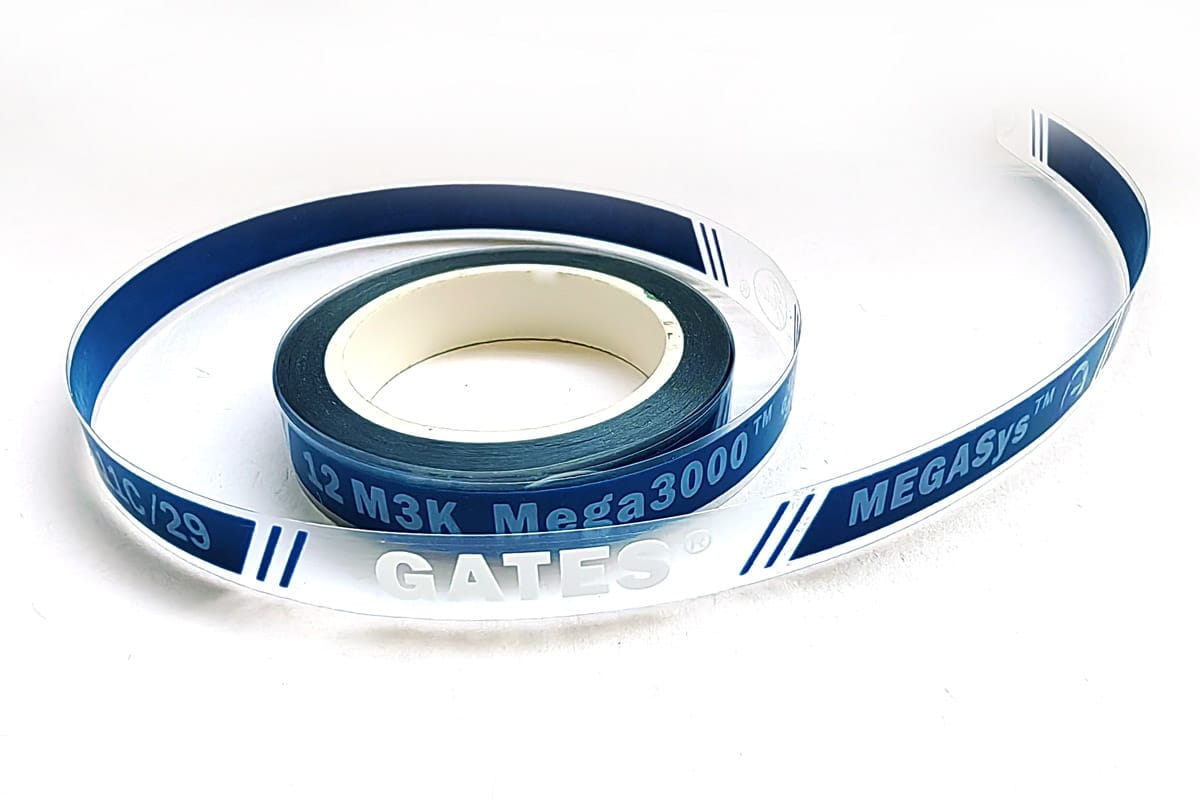

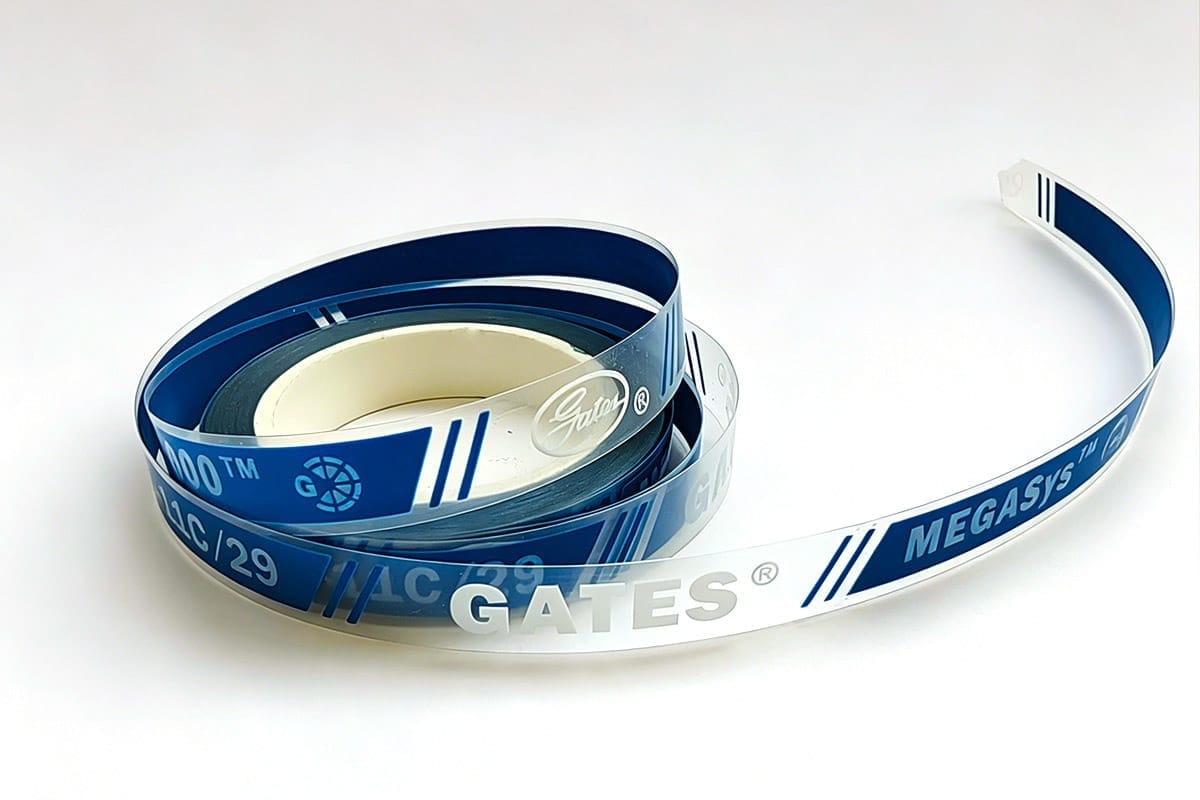

FLLabels manufactures premium hydraulic hose layline marking tape supplied on continuous rolls. Designed specifically for fluid power hose manufacturers, our pre-printed vulcanization transfer labels feature custom pressure ratings, logos, and specifications precisely printed on a specialized oil-resistant carrier film. During vulcanization, the ink permanently transfers to the rubber surface. After curing, the carrier film is easily peeled away, leaving a clean, durable layline that becomes an integral part of the high-pressure hose.
The Industry Challenge: Common Failures in Hydraulic Hose Layline Marking
Ink Degradation from Oil Exposure
Standard transfer inks smear, dissolve, or fade when the cured hose comes into contact with hydraulic fluids or diesel, causing critical safety warnings and pressure ratings to disappear.
Film Residue & Difficult Peeling
Inferior release films stick to the rubber compound during the 140°C–160°C curing cycle. This results in difficult film peeling or leaves residue on the hose, requiring costly manual cleaning.
Poor Ink Adhesion Under High Pressure
The transferred ink lacks strong bonding with the outer rubber layer. It easily peels off when scratched or cracks and flakes away when the hydraulic hose is bent, coiled, or subjected to pressure expansion.
How Our Layline Transfer Tape Works
Our pre-printed roll labels are engineered for seamless integration into your existing hydraulic hose manufacturing workflow:
- Wrap: The continuous roll of pre-printed layline tape is spirally wrapped onto the uncured hydraulic hose.
- Cover: The hose is then wrapped with water cloth or nylon as per your standard curing process.
- Vulcanize: Inside the autoclave or CV line (typically 140°C–160°C), the heat and pressure activate the transfer ink, bonding it permanently to the rubber matrix.
- Peel: After cooling, the carrier film is smoothly peeled away, revealing a clean transfer with easy peel-off and zero residue.
Labels Details & Transfer Effects
Core Advantages of FLLabels Transfer Technology
- Clean Transfer & Easy Peel-Off: Our specialized carrier film ensures the film strips away effortlessly after vulcanization. No tearing, no residue, and no secondary cleaning required.
- Vivid Colors & Clear Printing: Using premium imported inks, we deliver sharp, vibrant, and highly saturated colors that remain crisp, glossy, and legible after high-temperature curing.
- Strong Ink Adhesion: The ink formulation is strictly tested to cross-link deeply with the rubber matrix, ensuring the marking will not peel off when scratched or bent.
- Full Customization: We offer custom widths from 8mm to 400mm, supporting single, dual, or multi-color printing, as well as embossed/debossed effects to meet your exact branding needs.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Pre-printed Vulcanization Layline Marking Tape |
| Carrier Material | Polypropylene Release Film |
| Standard Thickness | 60um (20um-100um customizable) |
| Available Widths | 10mm, 8mm up to 400mm (Slit to your exact hose diameter needs) |
| Curing Temperature Window | 95°C to 155°C |
| Rubber Substrate Compatibility | NBR, CR (Neoprene), SBR, EPDM |
| Oil Resistance | Excellent (resists hydraulic oil, diesel, lubricants) |
| Roll Length | 400m – 500m per roll (or as requested) |
Target Applications: Compatible Hose Types
Our layline marking tape is meticulously formulated to meet strict identification requirements for various heavy-duty hydraulic applications. For general industrial needs, explore our dedicated Industrial Hose Labels.
- Wire Braid Hydraulic Hoses: Standard and high-pressure fluid transfer lines for construction and mining equipment.
- Multi-Spiral Hydraulic Hoses: Heavy-duty industrial hoses requiring permanent pressure rating identification.
- Automotive & Marine Hydraulics: Engine and brake system fluid lines requiring durable traceability.
Frequently Asked Questions
Yes. Our oil-resistant inks are specifically formulated to resist hydraulic oils, diesel, and lubricants. The co-vulcanized ink will not smear or dissolve when exposed to these aggressive fluids.
Yes. Our carrier film is engineered with a proprietary release coating that works effectively with oil-resistant rubber formulations like NBR and CR, ensuring clean peel-off without tearing.
We offer custom widths from 8mm to 400mm. For small-diameter hydraulic hoses, we recommend narrower widths to prevent wrinkling during the wrapping process, ensuring clear text reproduction.
Request Free Testing Samples
Stop struggling with oil degradation, blurred text, and poor adhesion. Test our hydraulic hose layline marking tape on your actual production line.
Contact Our Engineering Team →
We will send you customized free samples tailored to your curing process.
Technical Downloads
Product Data Sheet
Download our comprehensive technical specifications and application details.
What Our Customers Say
We export industrial hoses to 30+ countries, so label quality reflects our brand. FLLabels' custom 20mm labels with multilingual text and CE markings integrate seamlessly into our production line. Fast 12-day delivery and competitive factory-direct pricing. Their ISO 14001 environmental certification matches our sustainability goals.
Agricultural hoses face UV exposure, chemicals, and abrasion. We tested FLLabels' UV-resistant vulcanizable labels on our irrigation and pesticide hoses—excellent clean transfer after 155°C curing, and the printed batch codes remain readable after 3 years outdoor use. Their 40mm width accommodates all our technical specifications.
We run high-pressure hydraulic hose production at 155°C vulcanization temperature. FLLabels' thermal transfer labels have maintained perfect adhesion and barcode readability for over 2 years. The 30mm width fits our 3/8" to 1" hoses perfectly. Their ISO 9001 certification gave us confidence in batch consistency.
Mining hoses endure extreme abrasion and heavy loads. FLLabels' heavy-duty vulcanizable labels survive our harsh Australian outback conditions. The 50mm width accommodates detailed pressure ratings and safety warnings. Their clean transfer process ensures no film residue interferes with hose inspection.
Frequently Asked Questions
View all →After shipment, we will provide you with a tracking number. You can check the status of your package on the logistics company’s website at any time. If you have any questions, please feel free to contact us.
Yes, we support DHL, FedEx, UPS, air freight, sea freight, and can also use your designated logistics provider upon request.
Standard products are usually shipped within 3-5 days. For custom products, the lead time is typically 7-15 days depending on the complexity. Please confirm the exact delivery time with our sales team.
