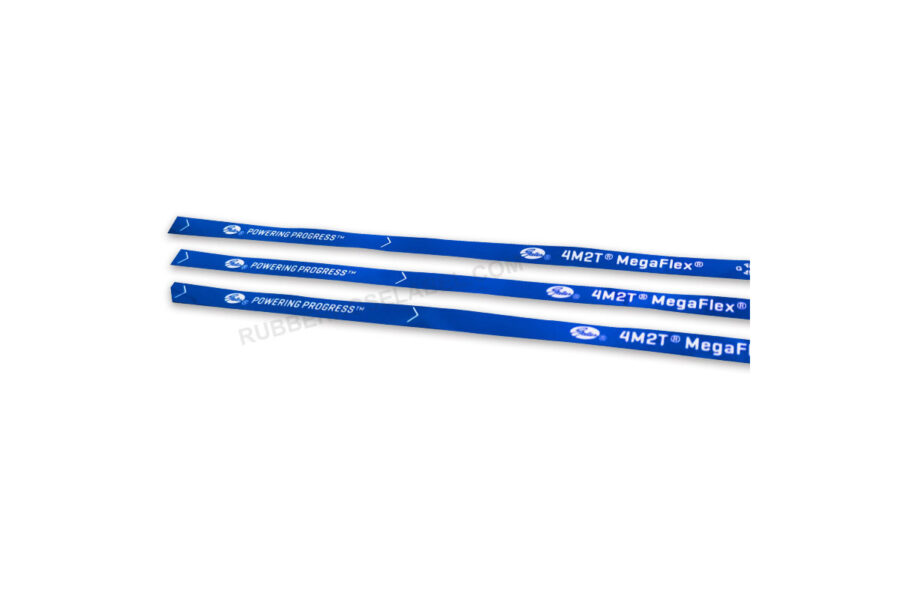

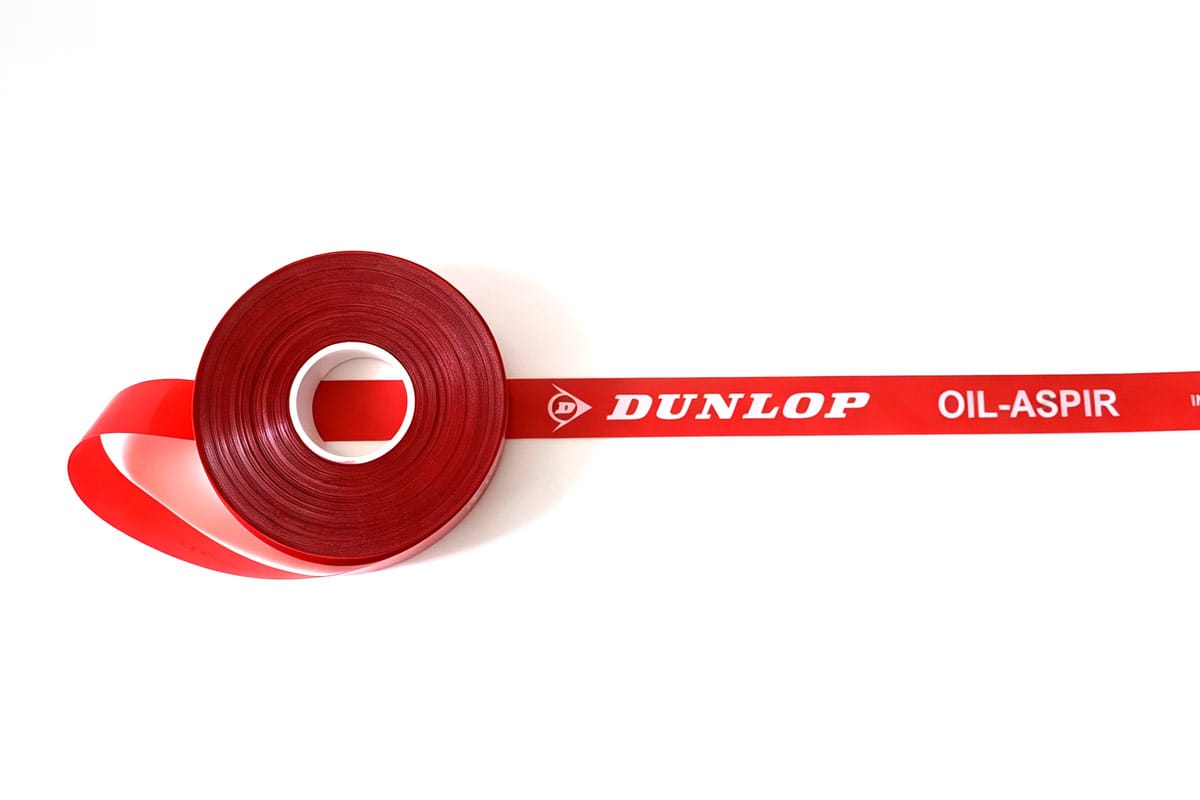

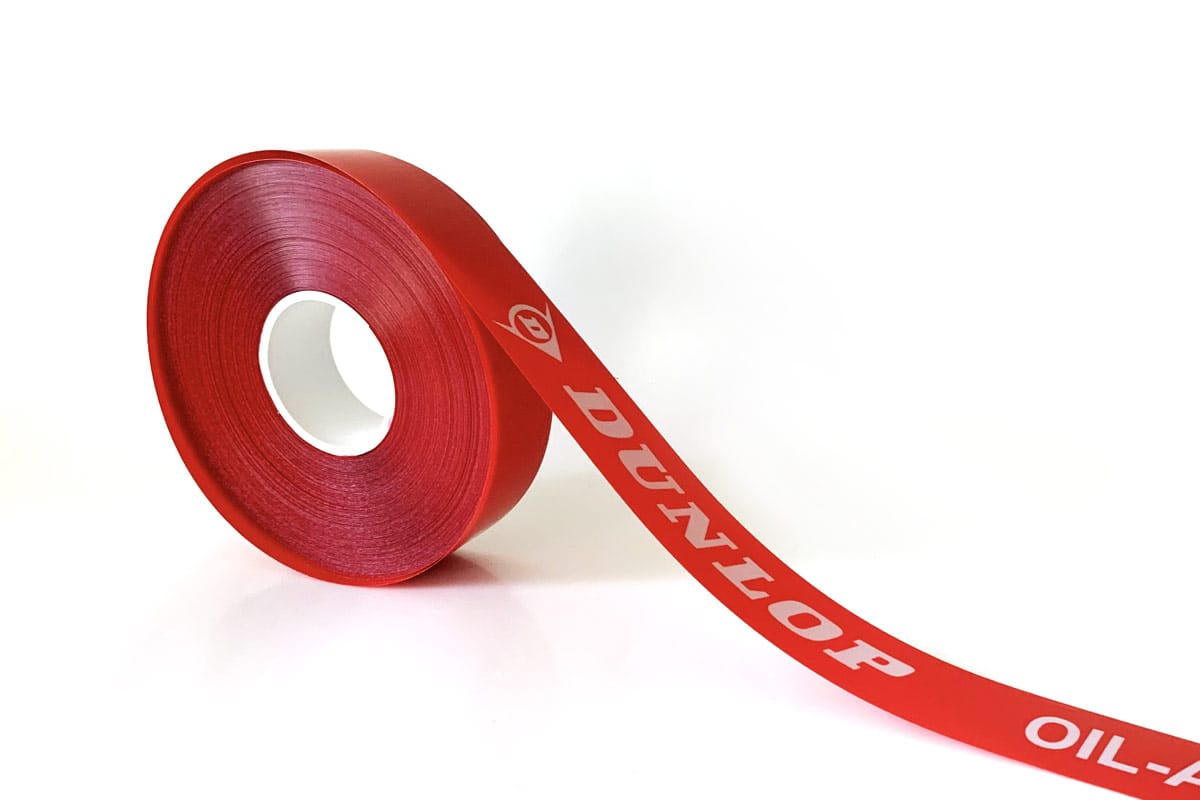

Premium Hose Label Transfer Film for Vulcanization Process
- Width: 45 mm
- Thickness: 100 μm
- Temperature: 110-155 ℃

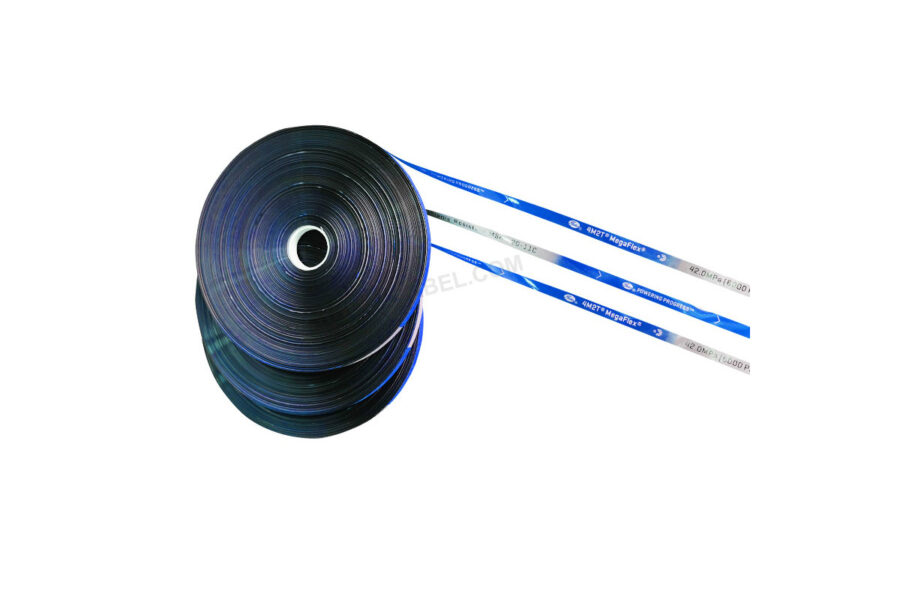

- Length: 400-500m per roll
- Application: All Kinds of Hydraulic and Industrial Hose
- Feature: Low MOQ & Free samples
Products Details
FLLabels manufactures premium hose label transfer film supplied on continuous rolls. Designed as the critical carrier medium for rubber hose identification, our pre-printed vulcanization transfer labels feature custom specifications precisely printed on a specialized polypropylene (PP) or PET release film. During vulcanization, the ink permanently transfers from the film to the rubber surface. After curing, the carrier film is easily peeled away, leaving a clean, durable marking. Our advanced release coating technology ensures zero residue and effortless film removal, even under high-temperature curing conditions.
The Industry Challenge: Common Failures in Transfer Film Application
Film Tearing During Unwinding
Inferior carrier films lack sufficient tensile strength. When subjected to the tension of automated spiral wrapping machines, the film snaps or stretches, distorting the printed text and halting production.
Poor Release Coating & Residue
Standard release agents fail under 150°C+ heat, causing the film to fuse with the rubber compound. Workers struggle to peel the film, leaving stubborn adhesive or silicone residue that requires costly manual cleaning.
Ink Smearing on Film Surface
Low-quality transfer inks do not properly anchor to the carrier film during storage, leading to smudging or blocking (ink transferring to the back of the roll) before it even reaches the vulcanization stage.
How Our Transfer Film Works in Your Workflow
Our pre-printed roll labels are engineered for seamless integration into your existing hose manufacturing workflow:
- Wrap: The continuous roll of pre-printed transfer film is spirally wrapped onto the uncured rubber hose with consistent tension.
- Cover: The hose is then wrapped with water cloth or nylon as per your standard curing process.
- Vulcanize: Inside the autoclave or CV line (typically 110°C–155°C), the heat activates the transfer ink, bonding it permanently to the rubber matrix while the film remains stable.

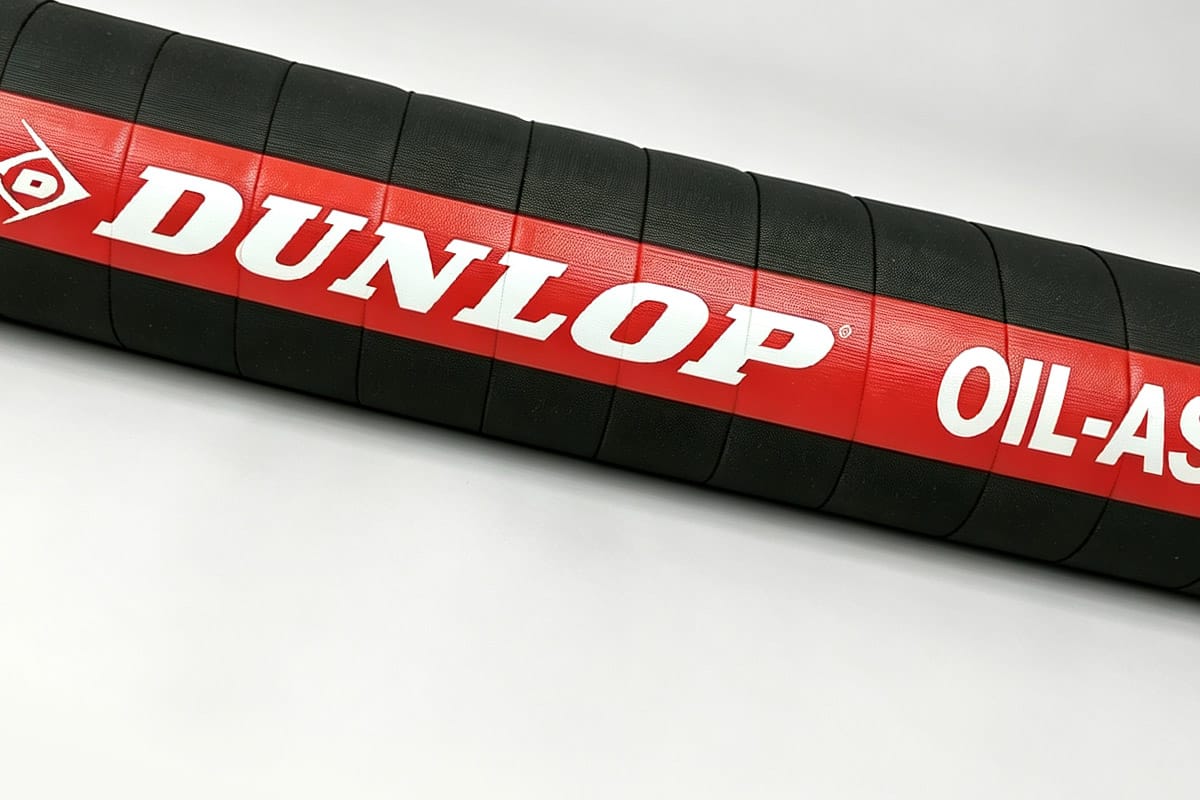

- Peel: After cooling, the carrier film is smoothly peeled away, revealing a clean transfer with easy peel-off and zero residue.
Labels Details & Transfer Effects
Core Advantages of FLLabels Transfer Technology
- Clean Transfer & Easy Peel-Off: Our specialized carrier film ensures the film strips away effortlessly after vulcanization. No tearing, no residue, and no secondary cleaning required.
- Vivid Colors & Clear Printing: Using premium imported inks, we deliver sharp, vibrant, and highly saturated colors that remain crisp, glossy, and legible after high-temperature curing.
- Strong Ink Adhesion: The ink formulation is strictly tested to cross-link deeply with the rubber matrix, ensuring the marking will not peel off when scratched or bent.
- Full Customization: We offer custom widths from 8mm to 400mm, supporting single, dual, or multi-color printing, as well as embossed/debossed effects to meet your exact branding needs.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Pre-printed Vulcanization Transfer Film / Tape |
| Carrier Material | Premium Polypropylene (PP) or PET Release Film |
| Standard Thickness | 100um |
| Available Widths | 45mm, (8mm up to 400mm, Precision slit for your needs) |
| Tensile Strength | High (Withstands automated wrapping machine tension) |
| Curing Temperature Window | 110°C to 155°C |
| Release Coating | Proprietary high-temperature release agent (Zero residue) |
| Roll Length | 400m – 500m per roll |
Target Applications: Compatible Hose Types
Our transfer film is meticulously formulated to meet strict identification requirements for various heavy-duty applications. For specific fluid-resistant needs, explore our dedicated Fuel Oil Resistant Hose Labels.
- High-Pressure Hydraulic Hoses: Wire braid and multi-spiral hoses requiring permanent pressure rating identification.
- Industrial Fluid Transfer: Oil, fuel, chemical, and compressed air hoses exposed to harsh environments.
- Automotive & Marine Hoses: Engine cooling and brake system fluid lines requiring durable traceability.
Frequently Asked Questions
PP (Polypropylene) film is highly cost-effective and offers excellent release properties for standard curing temperatures (up to 160°C). PET (Polyethylene Terephthalate) film provides superior dimensional stability and heat resistance, making it ideal for high-temperature applications or extremely thin calipers. We will recommend the best material based on your specific rubber compound.
No. Our carrier films are engineered with high tensile strength and dimensional stability. They will not snap, stretch, or distort under the standard tension of automated spiral wrapping machinery, ensuring continuous, uninterrupted production.
We use a specialized anti-blocking release coating on the back of the film, combined with strict temperature-controlled storage conditions (15°C – 25°C). This ensures the ink remains perfectly anchored to the print side and will not transfer to the back of the roll during transit or storage.
Request Free Testing Samples
Stop struggling with film tearing, residue, and poor adhesion. Test our hose label transfer film on your actual production line.
Contact Our Engineering Team →
We will send you customized free samples tailored to your curing process.
Technical Downloads
Product Data Sheet
Download our comprehensive technical specifications and application details.
What Our Customers Say
Food industry requires FDA-compliant labels with no contamination risk. FLLabels' food-grade vulcanizable transfers with clean transfer technology meet our strict hygiene standards. The 15mm labels fit our small-diameter beverage hoses perfectly. Their team provided excellent support for Thai language text printing.
Automotive brake hoses require precise traceability and DOT compliance. FLLabels' high-precision vulcanizable labels and manufacture dates meet Korean automotive standards. Their 10mm labels fit our small-diameter brake lines perfectly. ISO 9001 certification and batch-to-batch consistency impressed our quality team.
We produce nitrile and latex gloves for medical and industrial use. FLLabels' cold transfer labels for glove are excellent—clean application, strong adhesion, and not afraid of being pulled. Their 50mm×30mm custom labels markings help us meet export requirements. Fast delivery and competitive pricing.
Mining hoses endure extreme abrasion and heavy loads. FLLabels' heavy-duty vulcanizable labels survive our harsh Australian outback conditions. The 50mm width accommodates detailed pressure ratings and safety warnings. Their clean transfer process ensures no film residue interferes with hose inspection.
Frequently Asked Questions
View all →After shipment, we will provide you with a tracking number. You can check the status of your package on the logistics company’s website at any time. If you have any questions, please feel free to contact us.
Yes, we support DHL, FedEx, UPS, air freight, sea freight, and can also use your designated logistics provider upon request.
Standard products are usually shipped within 3-5 days. For custom products, the lead time is typically 7-15 days depending on the complexity. Please confirm the exact delivery time with our sales team.

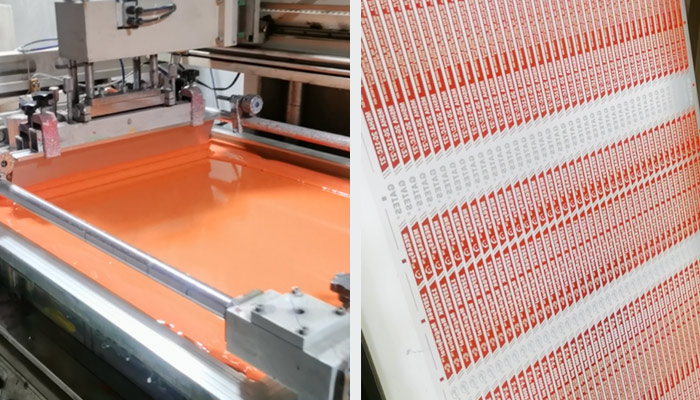

Custom Hose Labels Process
