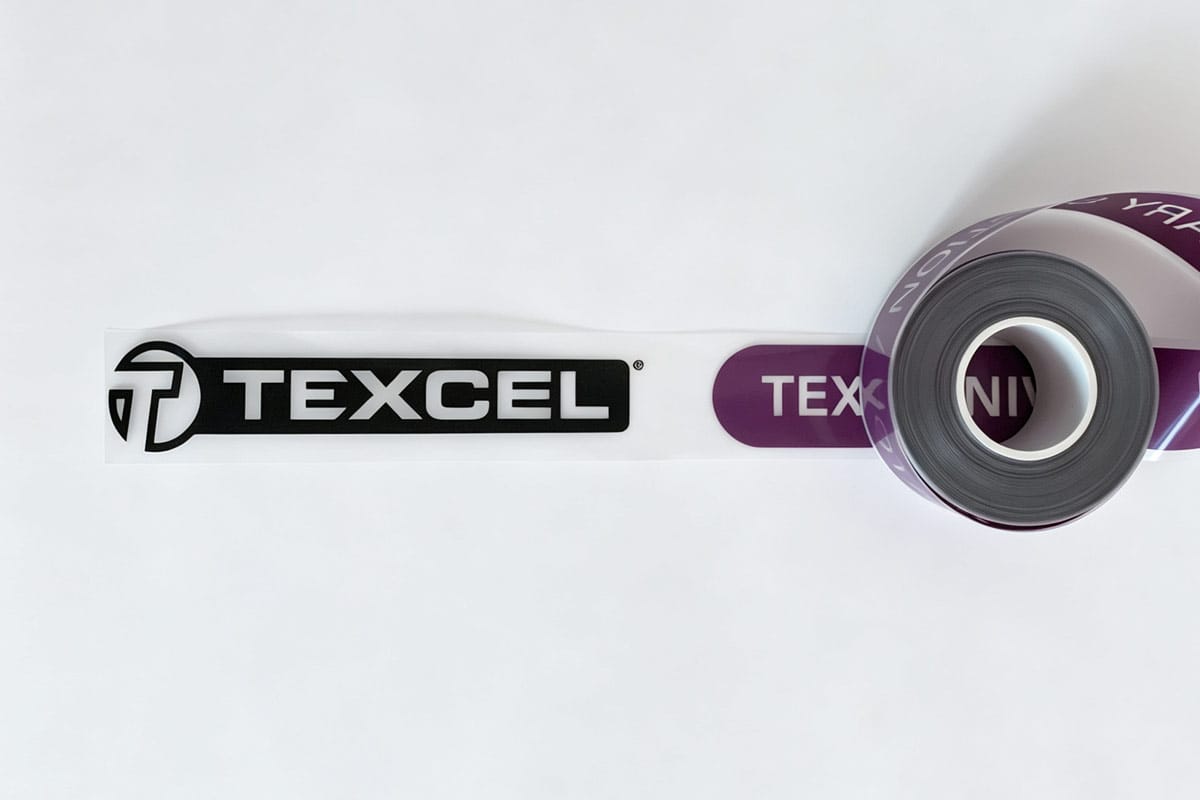

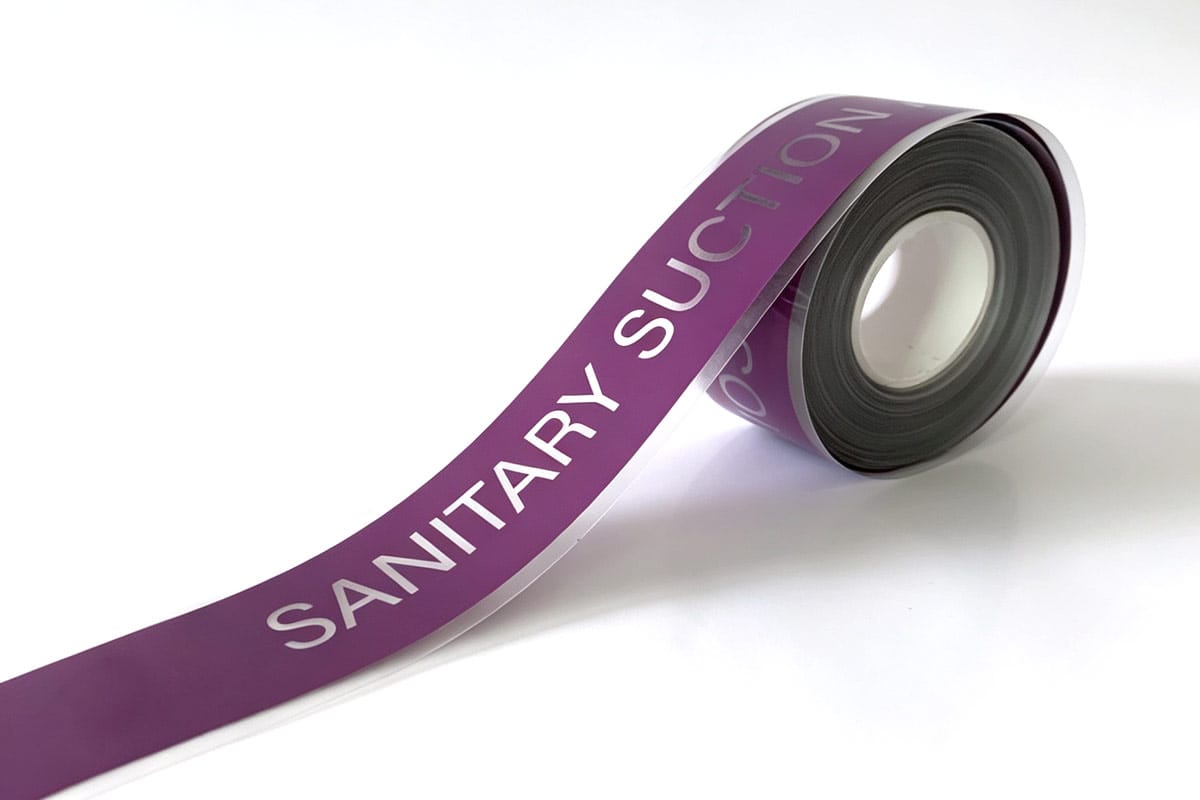

Custom Hose Layline Printing with Variable Data
- Width: 40 mm
- Colors: Two color
- Thickness: 60 μm
- Temperature: 140-160 ℃
- Length: 400-500meters/Roll
- Application: chemical, food, pharmaceutical industries
- Feature: Low MOQ & Free samples
Products Details
FLLabels manufactures premium hose layline printing solutions supplied on continuous rolls. Designed for hose manufacturers requiring complete product traceability, our pre-printed vulcanization transfer labels feature custom serial numbers, barcodes, and QR codes precisely printed on a specialized carrier film. During vulcanization, the ink permanently transfers to the rubber surface. After curing, the carrier film is easily peeled away, leaving scannable, durable codes for complete hose product traceability throughout the supply chain.
The Industry Challenge: Common Failures in Hose Layline Printing
Blurred Barcodes & Unreadable QR Codes
High heat and pressure cause the ink to spread, making barcodes unreadable by scanning systems, disrupting traceability workflows.
Incomplete Ink Transfer on Fine Details
Fine barcode lines and QR code modules often remain on the film instead of transferring completely, resulting in partial or failed scans.
Poor Adhesion on Curved Surfaces
Code labels on small-diameter hoses wrinkle during wrapping, distorting the code geometry and causing scan failures in MES/ERP systems.
How Our Custom Layline Printing Works
Our pre-printed roll labels are engineered for seamless integration into your existing hose manufacturing workflow:
- Wrap: The continuous roll of pre-printed variable data labels is spirally wrapped onto the uncured rubber hose.
- Cover: The hose is then wrapped with water cloth or nylon as per your standard curing process.
- Vulcanize: Inside the autoclave or CV line (typically 140°C–160°C), the heat and pressure activate the transfer ink, bonding it permanently to the rubber matrix.
- Peel: After cooling, the carrier film is smoothly peeled away, revealing scannable barcodes with clean transfer and zero residue.

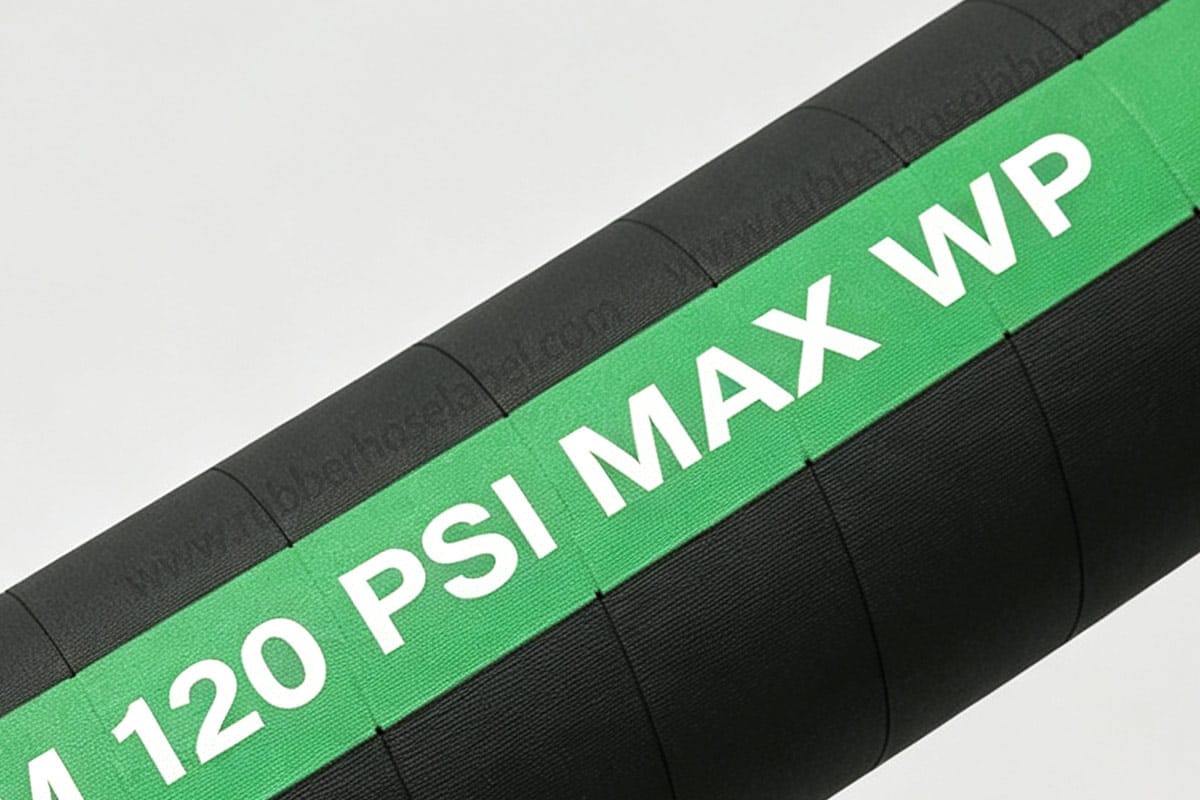

Labels Details & Transfer Effects
Core Advantages of FLLabels Transfer Technology
- Clean Transfer & Easy Peel-Off: Our specialized carrier film ensures the film strips away effortlessly after vulcanization. No tearing, no residue, and no secondary cleaning required.
- Vivid Colors & Clear Printing: Using premium imported inks, we deliver sharp, vibrant, and highly saturated colors that remain crisp, glossy, and legible after high-temperature curing.
- Strong Ink Adhesion: The ink formulation is strictly tested to cross-link deeply with the rubber matrix, ensuring the marking will not peel off when scratched or bent.
- Full Customization: We offer custom widths from 8mm to 400mm, supporting single, dual, or multi-color printing, as well as embossed/debossed effects to meet your exact branding needs.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Product Type | Pre-printed Variable Data Vulcanization Transfer Labels |
| Carrier Material | Premium Polypropylene (PP) Release Film |
| Standard Thickness | 60um (20um-100um customizable) |
| Available Widths | 40mm, (8mm up to 400mm, Slit to your exact hose diameter needs) |
| Curing Temperature Window | 140°C to 160°C |
| Rubber Substrate Compatibility | NBR, NR, EPDM, SBR |
| Printing Capabilities | 1D barcodes, 2D QR codes, Data Matrix, serial numbers |
| Roll Length | 400m – 500m per roll (or as requested) |
Target Applications: Compatible Hose Types
Our layline printing solutions are meticulously formulated to meet strict traceability requirements for various hose applications. For general oil-resistant needs, explore our dedicated Fuel Oil Resistant Hose Labels.
- Traceability Systems: Hose manufacturers requiring complete product tracking from production to end-user.
- Quality Management: Hoses requiring batch tracking and quality control documentation.
- Automotive & Aerospace: Critical fluid lines requiring individual serial number traceability for safety compliance.
Frequently Asked Questions
Yes. Our high-contrast printing technology ensures that QR codes and Data Matrix codes maintain Grade A/B scan quality after the transfer process, compatible with standard MES/ERP scanning systems.
Yes. We support variable data printing including unique QR codes and sequential serial numbers for each hose, enabling complete individual product traceability throughout the supply chain.
For reliable QR code scanning, we recommend a minimum size of 10mm x 10mm. Our engineering team can advise on optimal dimensions based on your specific scanning equipment requirements.
Request Free Testing Samples
Stop struggling with blurred barcodes, unreadable QR codes, and poor adhesion. Test our hose layline printing on your actual production line.
Contact Our Engineering Team →
We will send you customized free samples tailored to your curing process.
Technical Downloads
Product Data Sheet
Download our comprehensive technical specifications and application details.
What Our Customers Say
Food industry requires FDA-compliant labels with no contamination risk. FLLabels' food-grade vulcanizable transfers with clean transfer technology meet our strict hygiene standards. The 15mm labels fit our small-diameter beverage hoses perfectly. Their team provided excellent support for Thai language text printing.
Chemical resistance is critical for our petrochemical hoses. FLLabels vulcanizable labels withstand acid and solvent exposure without fading. We appreciate their 200,000m monthly capacity and 15-day lead time. Highly recommended for chemical industry applications, recommend!
We run high-pressure hydraulic hose production at 155°C vulcanization temperature. FLLabels' thermal transfer labels have maintained perfect adhesion and barcode readability for over 2 years. The 30mm width fits our 3/8" to 1" hoses perfectly. Their ISO 9001 certification gave us confidence in batch consistency.
Frequently Asked Questions
View all →After shipment, we will provide you with a tracking number. You can check the status of your package on the logistics company’s website at any time. If you have any questions, please feel free to contact us.
Yes, we support DHL, FedEx, UPS, air freight, sea freight, and can also use your designated logistics provider upon request.
Standard products are usually shipped within 3-5 days. For custom products, the lead time is typically 7-15 days depending on the complexity. Please confirm the exact delivery time with our sales team.
Custom Hose Labels Process
Discuss Needs
Design Draft
Approve Design
Sign Contract
Produce & QC

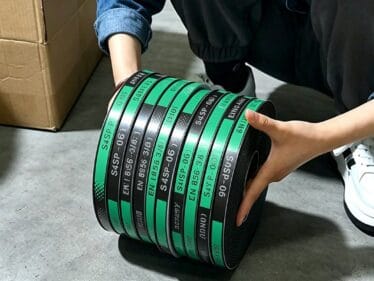

Packing & Ship
